Description

OBJECTIVES:

Familiarize users with the Raspberry Pi hardware, its components, setup, and functionalities. This includes understanding various models, OS installation, and basic configuration.

Explore the basics of IOT and networked devices by connecting the Raspberry Pi to the internet or local networks.

Trainee will be Familiar with lots of Components such as I2C ( Communication Protocols), BMP180 ( Barometric Pressure/ Altitude Sensor), POT(ADC), DHT-11 ( Temperature & Humidity Sensor), MQ-135( Air quality Sensor).

Support creativity by enabling users to design and test their own ideas and applications, emphasizing the Raspberry Pi’s role as a prototyping tool.

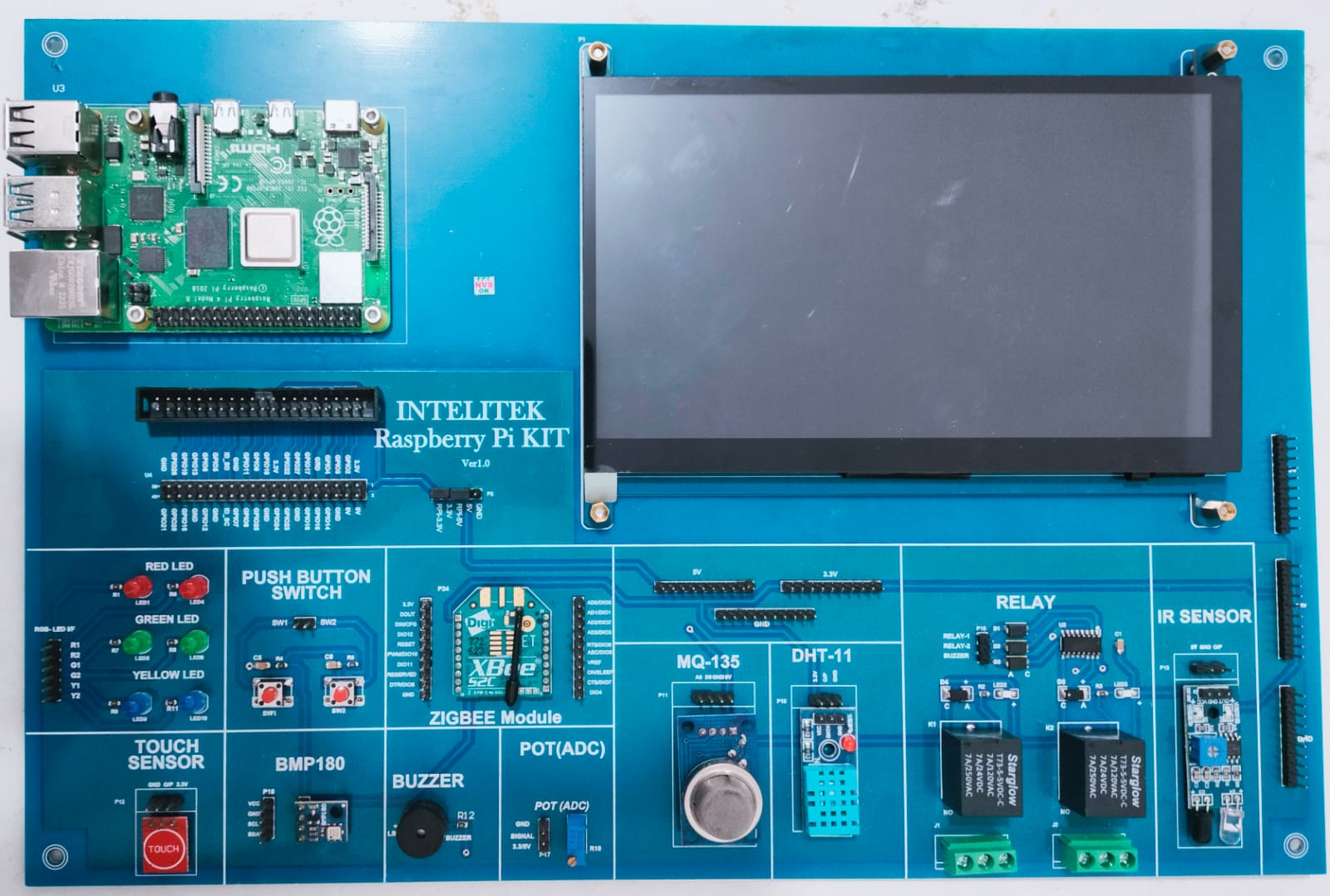

Components:

RPi 4 Model B : RISC Model, CPU Speed : 1.5  GHz

IR Sensor : Operating Voltage (VDC): 3-5 V, Distance range ( cm): 25

MQ-135 : Operating Voltage (VDC) : 3-5 V , Distance range (ppm): 10-1000

BMP180 : Operating Voltage (v) : 1.71-3.6 Peak, Current: 1.12mA, Operating Pressure: 300hPa-1100hPa

Touch sensor : Operating Voltage (VDC): 3-5 V purpose : to sense the sensitivity.

DHT 11 : Power Supply : 3.3 -5.5 v DC, Range Humidity 20-90% RH, Temperature 0-50 celsius.

1.8″TFT Display  : Display Size (inch) : 7 ,Input Voltage (V) : 5 V , Pixel Resolution : 1024 * 600, Interface Type : SPI

Relay :  5V -10 A

Potentiometer : 100k

Pushbutton : SPST

Buzzer : 5V

RGB LED : 5V RGB LED

Zigbee/ NB-IOT : Zigbee -2.4GHz for worldwide deployment

FEATURES:

On Board Components

Plug & Play

Easy Prototyping

DIY

Product Development
