Description

OBJECTIVE OF IOT:

• Enhance the skills in core engineering for Students, Faculty and Industry professionals.

• To bridge the gap between Institutional training and Industry requirements.

• Provide trained personnel to recruiters and help industries save resources on initial training.

• Increase the Rate of Employability by making graduates more conversant with new technologies.

• Upgrade the course plan of Technical Institutes as per the current Industrial Standards.

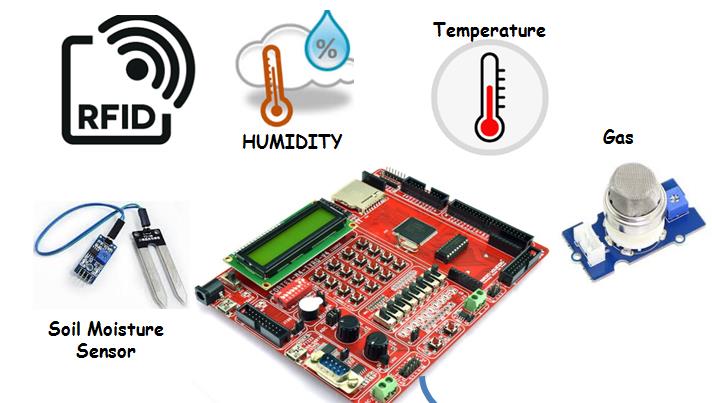

Specifications of IoT Trainer kit using Cortex M4

Processor : LPC4088

8 Nos. Point LEDs (Logic Output)

8 Nos. Digital Input(SLIDE Switch)

2 Nos. Analog Input (Potentiometer)

2×16 Char LCD Interface (Optional)

Temperature Sensor(LM35)

Internal RTC with Battery-Backup

No. UART(RS232)

1 No. USB UART USB 2.0 device (Virtual Port)

Digital / Analog Output Interrupts Study,

Reset Button

4×4 Matrix Keyboard

40-Pin Expansion Connector JTAG (Program/Debug)

ISP Programming

2 Nos. 20pin- I/O Expansion Connector

PWM Terminations

Stepper Interface Optiona

Onboard Zigbee Interface

Onboard Square wave Generator

SPI/I2C Expansion Connector

MicroSD card Interface

Sensors

Humidity

Temperature

Gas

RFID

Soil Mositure

Supporting Cloud

Thingspeak

Caynne

Amazon

External Sensors

PIR sensor

Ultrasonic sensor

GAS sensor

Air Quality sensor

IR sensor

Fire sensor

Light sensor

Flex sensor

Heartbeat sensor

vibration

servo motor

Soil Moisture sensor

Rain sensor
