Description

Specifications

LoRa Shield

 168 dB maximum link budget.

 +20 dBm – 100 mW constant RF output vs.

 +14 dBm high efficiency PA.

 Programmable bit rate up to 300 kbps.

 High sensitivity: down to -148 dBm.

 Bullet-proof front end: IIP3 = -12.5 dBm.

 Excellent blocking immunity.

 Low RX current of 10.3 mA, 200 nA register retention.

 Fully integrated synthesizer with a resolution of 61Hz.

 FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.

 Built-in bit synchronizer for clock recovery.

 Preamble detection.

 127 dB Dynamic Range RSSI.

 Automatic RF Sense and CAD with ultra-fast AFC.

 Packet engine up to 256 bytes with CRC.

 External Antenna via I-Pex connector

Package Includes:

 LoRa Shield 1 No’s

 LoRa Antenna 1 No’s

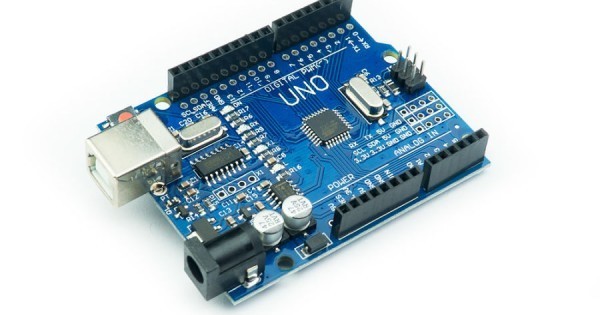

 Arduino Uno

 USB Cable
