IES-MS-502

KEY TECHNICAL SPECIFICATIONS

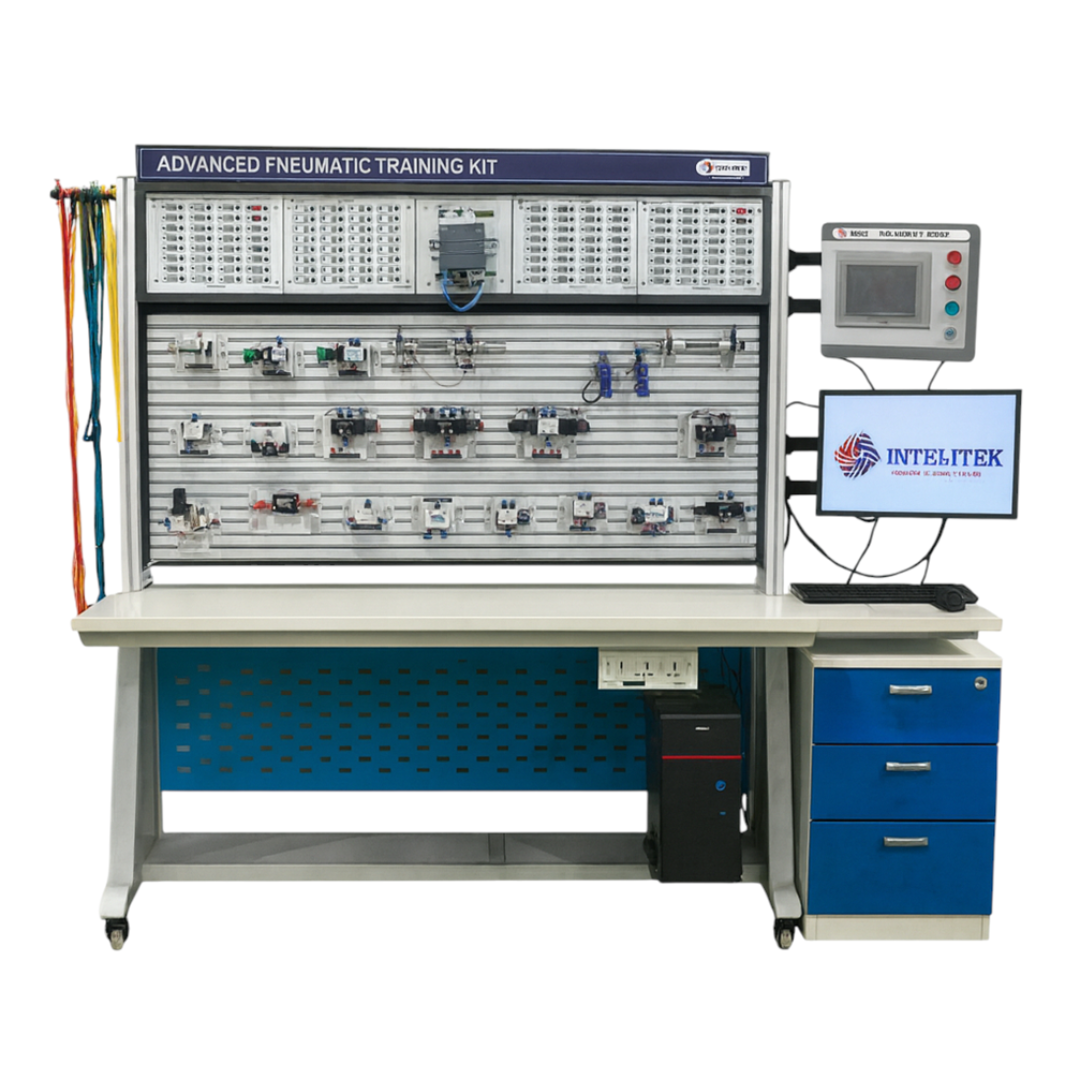

Pneumatic Training WorkstationIndustrial workstation with modular mounting system for assembling pneumatic and electro-pneumatic circuits.

Pneumatic Actuation SystemSingle and double acting pneumatic cylinders used for demonstration of linear motion control.

Air Preparation UnitFilter-Regulator-Lubricator (FRL) unit with pressure gauge for compressed air conditioning and pressure regulation.

Directional Control ValvesVarious manually operated, pilot-operated and solenoid-operated valves for pneumatic circuit control.

Flow & Pressure Control ComponentsFlow control valves, sequence valves and pressure regulating components for regulating pneumatic operations.

Pneumatic Logic ElementsAND and OR pneumatic logic valves used for automation logic implementation.

Sensors & Detection DevicesMagnetic reed switches, proximity sensors and pneumatic switches for signal generation in automation circuits.

Electro-Pneumatic Control SystemElectrical push buttons, relay modules, timers, counters and sensors for electro-pneumatic automation control.

Power & Control Interface24 V DC power supply and electrical connection modules for operating electro-pneumatic circuits.

Pneumatic Workbench & CompressorIndustrial pneumatic workstation with air compressor and accessories for laboratory operation.

RANGE OF EXPERIMENTS

Basic pneumatic circuit design and operation

Directional control of single and double acting cylinders

Flow control and speed regulation of pneumatic actuators

Pneumatic logic circuits using AND / OR logic valves

Sequential pneumatic automation circuits

Electro-pneumatic control using sensors and relays

Timer and counter based automation sequences

Pressure regulation and sequence control experiments

Sensor-based electro-pneumatic automation applications

FEATURES

Industrial-grade pneumatic and electro-pneumatic components

Modular workstation for quick circuit assembly and modification

Tool-free pneumatic connections using push-in fittings

Cut-section models for visualization of internal device construction

Technical posters for classroom explanation of pneumatic principles

Software support for pneumatic circuit visualization and simulation

Robust training system suitable for automation laboratories and skill training
